NXR-1700/1800 Compact Repeaters
MULTI-MODE, SPACE-SAVING REPEATER SOLUTION
The NXR-1700 VHF (NXR-1800 UHF) is a light, ultra-compact, multi-mode conventional repeater that supports features and performance that make it ideal for users wishing to increase the range and capacity of an existing FM Analogue system while also offering the option to migrate to DMR or NXDN digital operation by simply activating the appropriate license and configuring the radio accordingly.
Features include:
• 50/40* – 1 W RF Output Power (Up to 50/40* W@50%, 25 W@100% Duty Cycle) *(UHF models)
• Up to 32 Channels
• Easy visible 1.71-inch OLED Display
• Built-in IP Network Adapter
• IP Remote Management
• Multi-Site Conventional IP Network up to16 Sites (for both Digital and FM Analogue) in Unicast mode / Unlimited (depends on Ip backbone equipment) in Multicast mode (License Required - KWD-NX10MS)
• Voting Repeater + Up to 15 Receivers (FM Analogue/NXDN/DMR)
• Flexible redundancy configuration
• SIP phone interface (OP)
DIGITAL – COMMON
• Built-in AMBE+2™ Vocoder
• Mixed Analogue/Digital Operation
• Site Roaming Using Beacon
• RF-Link: NXDN / DMR
• Repeat Encrypted Voice/Data (AES/DES/DMR Enhanced Encryption)
• User List / Site Group Table
• 1+1 Hot Standby redundancy
|
FM ANALOGUE
(License Included)
• FM Conventional Operation
• Multiple QT/DQT
|
|
DIGITAL DMR
(License Required - KWD-NX10DC)
• TDMA 2-slot 12.5 kHz bandwidth equivalent to 6.25 kHz very narrow bandwidth
• DMR Tier II Conventional Operation
• Call Interruption
|
|
DIGITAL NXDN
(License Required - KWD-NX10NC)
• FDMA – Very narrow 6.25 kHz & narrow 12.5 kHz bandwidths
• NXDN Conventional Operation
• Standalone and IP multisite configuration
• Radio Access Control
• Restricting the Use of Repeater with Access Control Key
• SIP phone Server support
|
• IP Firmware loader for multiple repeaters (FM Analogue, NXDN and DMR)
• Remote Control of Radio via IP Interface (IPRCI) for Analogue, NXDN and DMR
• Simple Network Management Protocol (SNMP) support for FM Analogue, NXDN and DMR
• Log acquisition and real time status monitoring for FM Analogue, NXDN and DMR
• QoS Support with Differentiated Services Code Point (Analogue, NXDN and DMR)
Light, Compact and Space Efficient
|

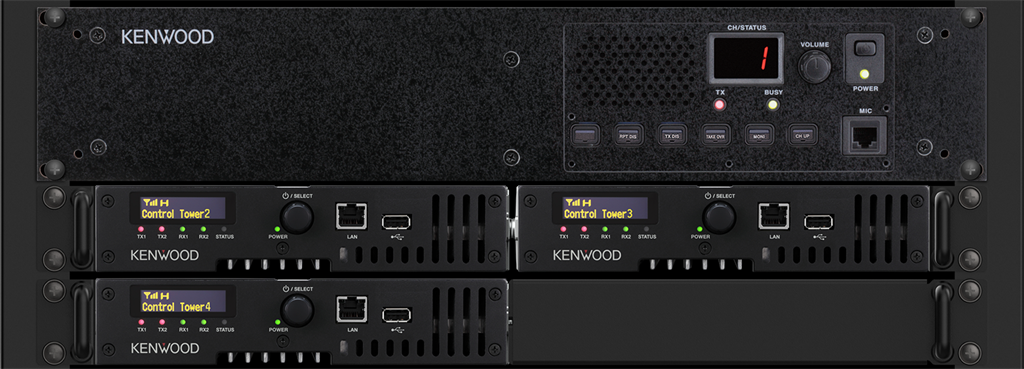

The NXR-1000 Series repeaters require only a quarter of the rack space compared to the NXR-710/810 or TKR-D710/810 Series models.
|
|

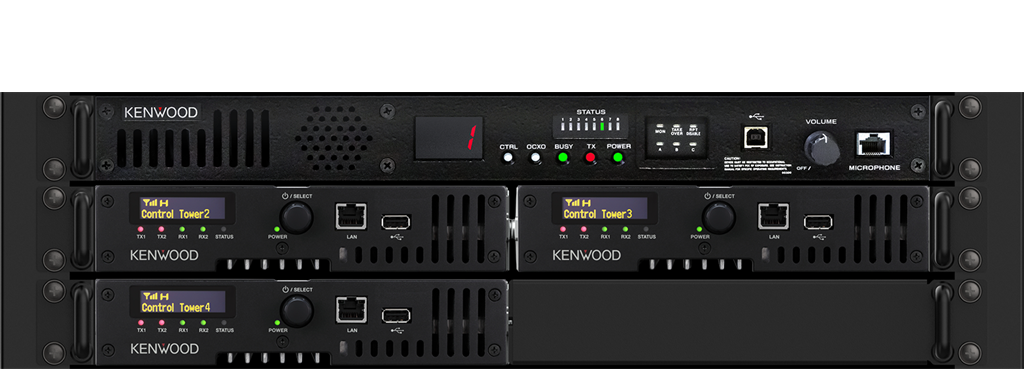

In addition, the NXR-1000 Series repeaters take up only half the rack space of other 1U repeaters that are 19-inch wide.
|
Orderly migration from FM Analogue to DMR or NEXEDGE NXDN Digital operation

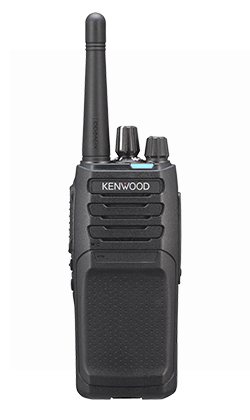

The NX-1200AE3 (VHF) and NX-1300AE3 (UHF) hand-portable radios are a perfect match to the NXR-1700/1800 repeaters. These entry-level hand-portable radios are supplied factory-programmed for FM Analogue operation but allow you to upgrade to either DMR + FM Analogue or NEXEDGE NXDN + FM Analogue formats at a time to suit your needs – making your investment in the NXR-1700/1800 repeater futureproof and the migration to the benefits of digital operation both orderly and cost-effective.
