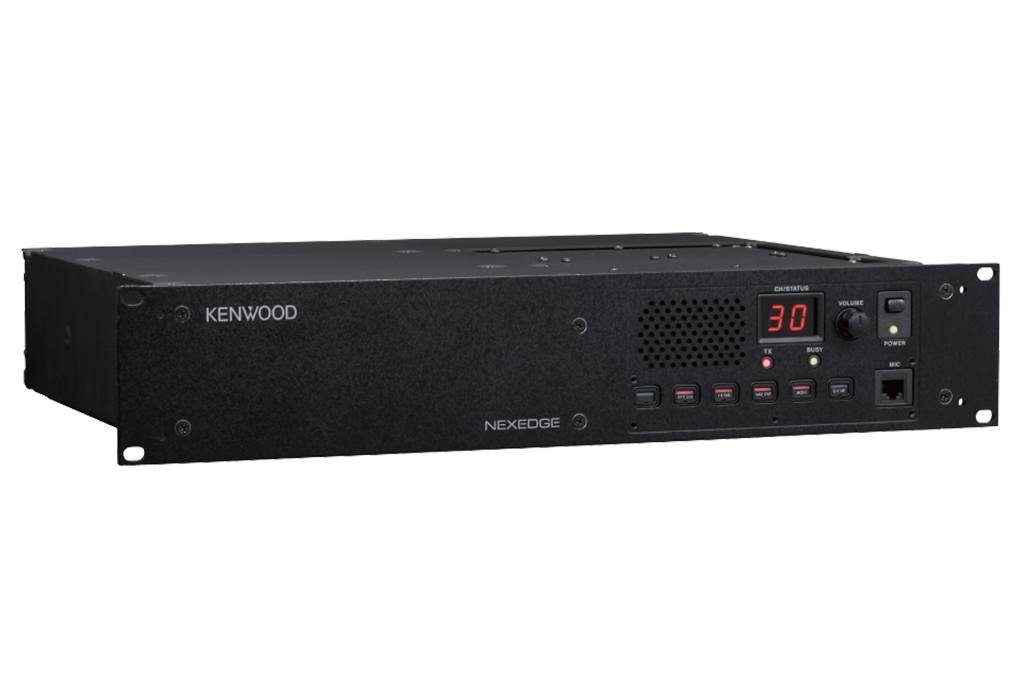

NXR-710E dPMR
NEXEDGE VHF dPMR Digital Conventional/Analogue Repeater (EU Use)
Points forts
| dPMR TS102 658 Mode 2 Repeater operation |
| Operates in dPMR Digital Conventional Voice and FM Analogue Modes, even on the same channel |
| Autosenses Received Mode (Digital or Analogue) |
| Also available as a firmware update to current NXDN NEXEDGE NXR-710E repeaters |
| Multi-Site IP Network Mode (via KTI-3 option) |
Accessoires fournis
| Amortisseur | Oui |
| Câble d' alimentation CC | Oui |
| Fusible | Oui, 15 A |
| Poignée | Oui |
| Mode d'emploi | Oui, Anglais, Espagnol, Français, Italien, Allemand, Néerlandais, Turc ou Grec |
| Ensemble de vis | Oui |
Caractéristiques base et répétiteur
| 16 CTCSS/DCS Repeater Controller Built-In | Oui |
| 19" Rack Mount Design | Oui |
| Audio Distortion | Less than 2,5% |
| CW ID | Oui |
| Flash ROM for Future Upgrades | Oui |
| Front Mounted Speaker | Oui |
| Full-Duplex Operation | Oui |
| Hang Timer | Oui |
| LED Display & Indicators | Oui |
| Microphone Jack on Front Panel | Oui |
| Programmable Function Keys | 6 |
| Repeater Features | Oui |
| Time-Out Timer | Oui |
| Volume Control on Front Panel | Oui |
| Windows Programming and Tuning Software | Oui |
NEXEDGE dPMR Features
| Intersite Call Mode | Unicast |
Normes applicables
| dPMR: TS 102 658 | Oui, Tier 2 Mode 1 Peer-to-peer mode Tier 2 Mode 2 Repeater mode |
| R&TTE: EN300 086, 300 113, 300 219, 301 489, 301 166 | Oui |
| EU Safety: EN60065, 60950-1, 60215 | Oui |
| Measurement - EIA Standards | Oui |
| Measurement - EN Standards | Oui |
Spécifications techniques
| Bande de fréquences | 136 - 174 MHz |
| Number of Channels | 30 |
| Channel Frequency Spread | 38 MHz |
| Channel Spacing | Analogue : 25 kHz/20 kHz/12.5 kHz |
| Channel Spacing - Digital | 6,25 kHz |
| Antenna Impedance - 50 Ohm | Oui |
| Antenna Connector | RX: BNC TX: N |
| Current drain | Stand-By: 0.5 A Receive: 1.0 A Transmit: 11.0 A |
| Duty Cycle | 100% at 25 W, 50% at maximum power |
| Frequency Stability | ± 1 ppm (-30 °C to + 60 °C) |
| Operating Temperature Range | -30 °C to + 60 °C |
| Operating Voltage | 13.2 V DC (10.8 ~ 15.6 V DC) |
| PLL Channel Steps | 2.5 kHz / 3.125 kHz |
| Dimensions (WxHxD) | 483 x 88 x 340 mm - Projections not included - |
| Weight (net) | 9.7 kg |
Caractéristiques du récepteur
| Adjacent Channel Selectivity | Analogue: 88 dB at 25 kHz 81 dB at 20 kHz 77 dB at 12.5 kHz |
| Audio Output | 4 W with less than 5% distortion |
| Intermodulation | Analogue: 72 dB |
| Sensitivity | Digital: 3% BER: 0.22 µV at 6.25 kHz. 1% BER: -6 dB µV at 6.25 kHz. |
| Sensitivity - EIA 12 dB SINAD | 0.28 µV |
| Sensitivity - EN 20 dB SINAD | -3dB µV |
| Spurious Reponse Rejection | 85 dB |
Caractéristiques d'émetteur
| RF Power Output | 5 W - 50 W |
| FM Noise (EIA) | 55 dB at 25 kHz 53 dB at 20 kHz 50 dB at 12.5 kHz |
| Modulation Distortion | Less than 1% |
| Modulation Limiting | Analogue: ± 5.0 kHz at 25 kHz ± 4.0 kHz at 20 kHz ± 2.5 kHz at 12.5 kHz |
| Spurious Emission (EN) | -36 dBm ≤ 1 GHz -30 dBm > 1 GHz |
